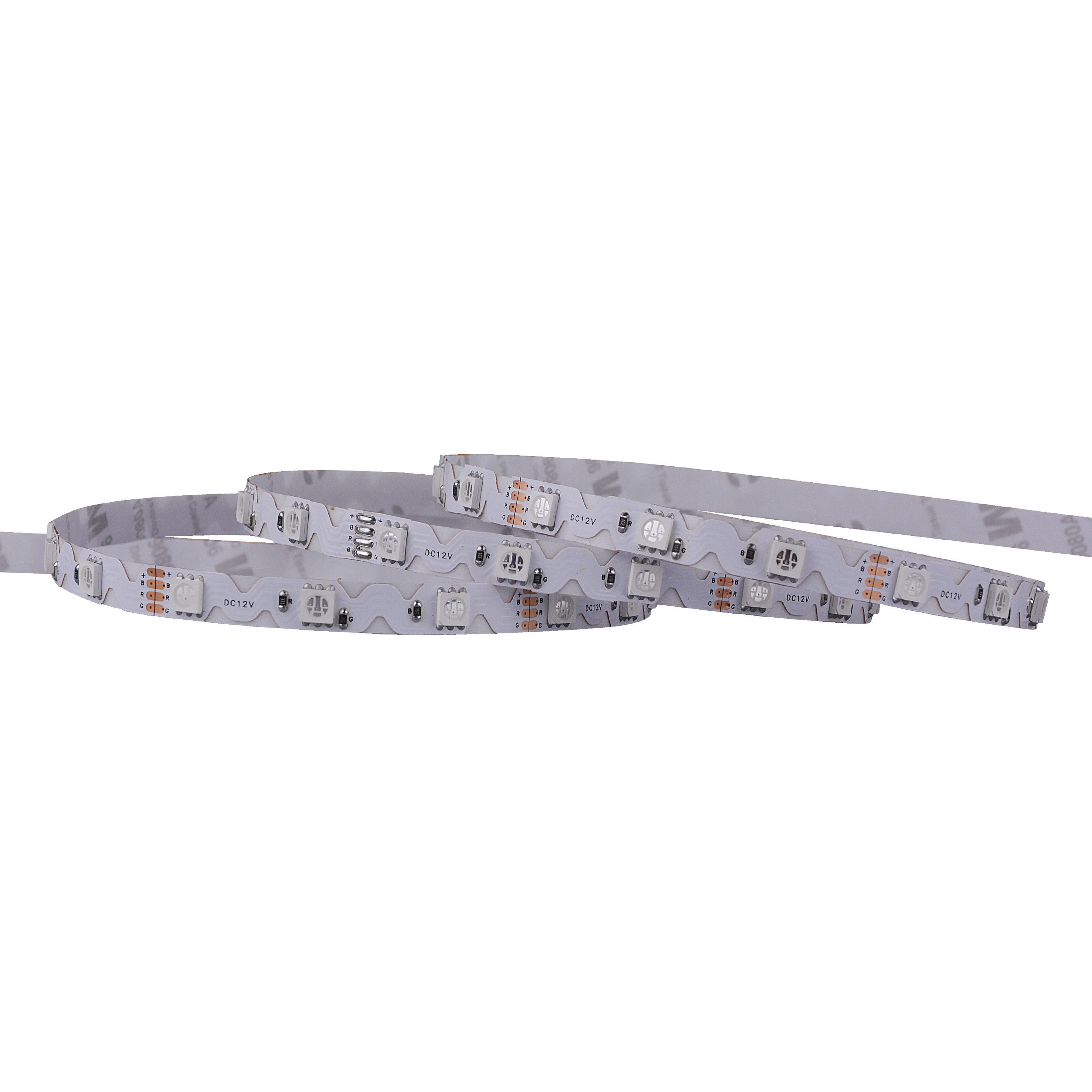

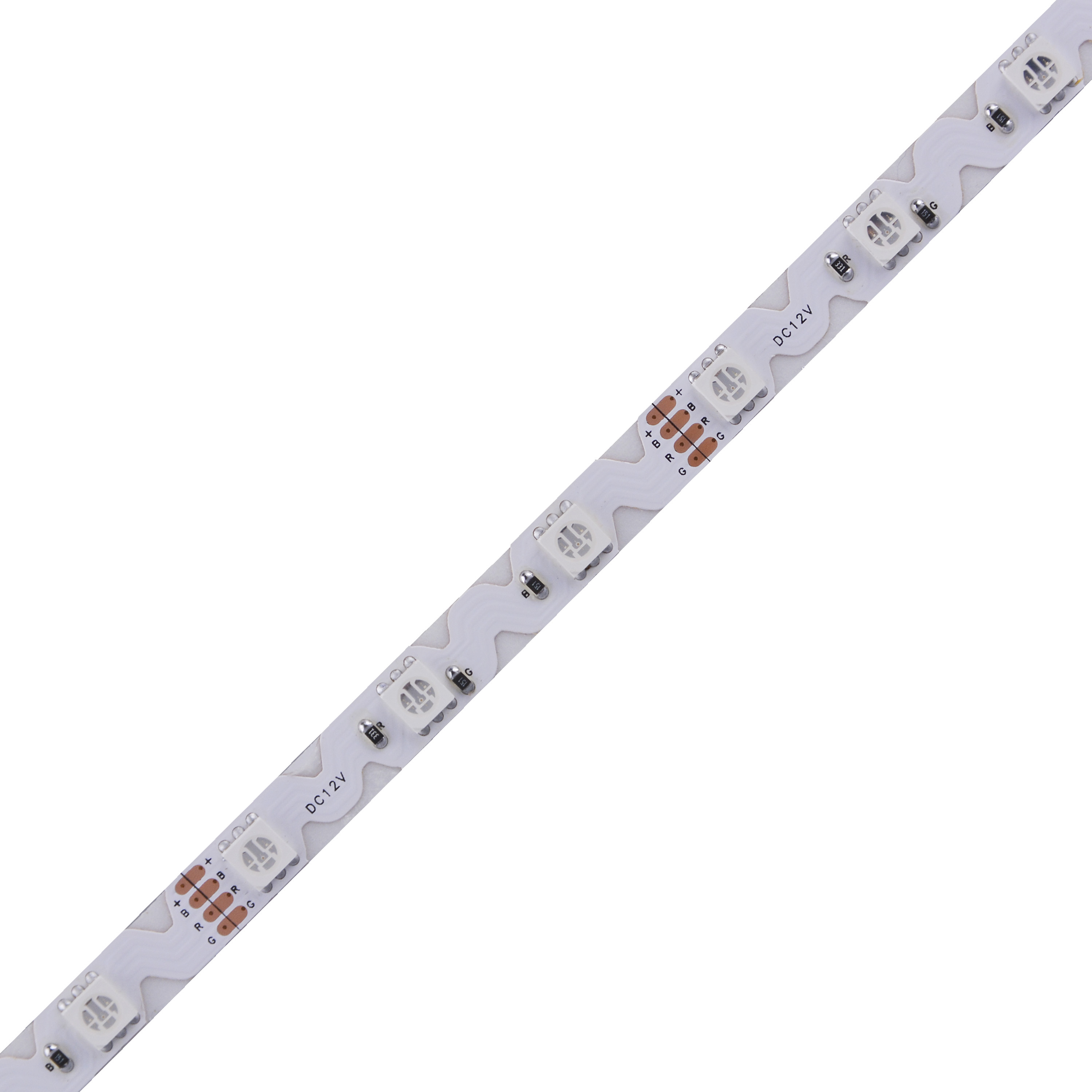

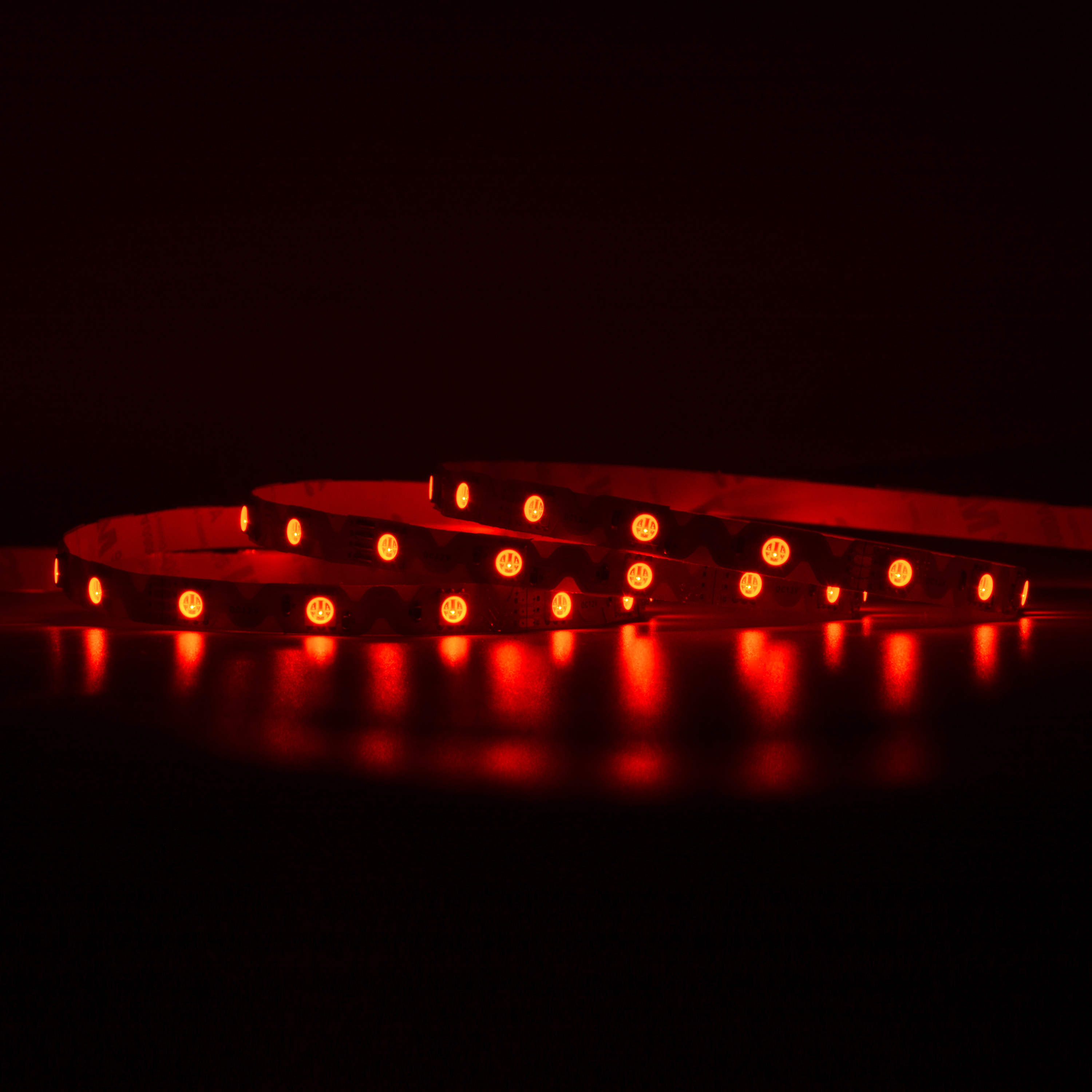

8mm 12V 48leds/m 5050 Zigzag LED strip

  • 8mm 12V 48leds/m 5050 Zigzag LED strip
  • 8mm 12V 48leds/m 5050 Zigzag LED strip
  • 8mm 12V 48leds/m 5050 Zigzag LED strip
SPECIFICATION
  • Typical Specification
LED Type 5050 SMD
LED Quantity (leds/m) 48 leds/m
Typical Color Temperature RGB
Work Voltage 12V
Power 10 w/m
Ra /
Cutting  Unit 3 LEDs 62.5mm
PCB Width 8mm
IP Rating Opthional IP20/IP65/IP67/IP68
Adhesive Tape 3M 9495LE 300MP


  • Product List
    Model No. Specification
    LED Type LED Qty (pcs/m) Color Color Temperature Work Voltage Power Brightness Ra Cutting Unit PCB Size
    F5050-48-RGB-V12-NWP SMD
    5050
    48
    RGB RGB 12V DC
    10W/M
    / / 3 LEDs 62.5mm 5000*8mm
    2 OZ

  • Packing Informaiton
Package 1: 500m per carton
Inner box:  25rolls 125m
34x20x22 cm / 3.2kg
Outer Box : 4 inner boxes 500m
42x35x46cm / 13.8kg
