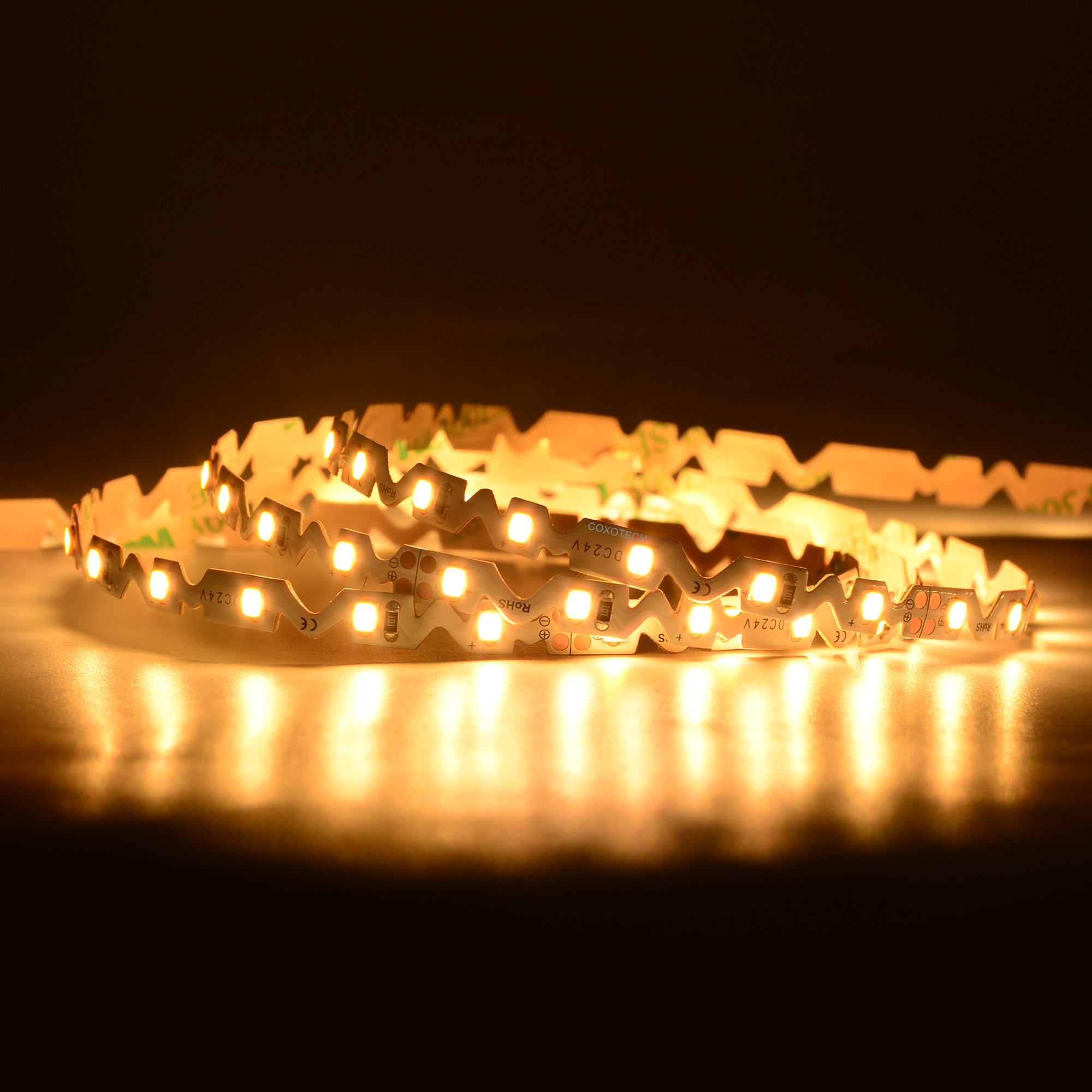

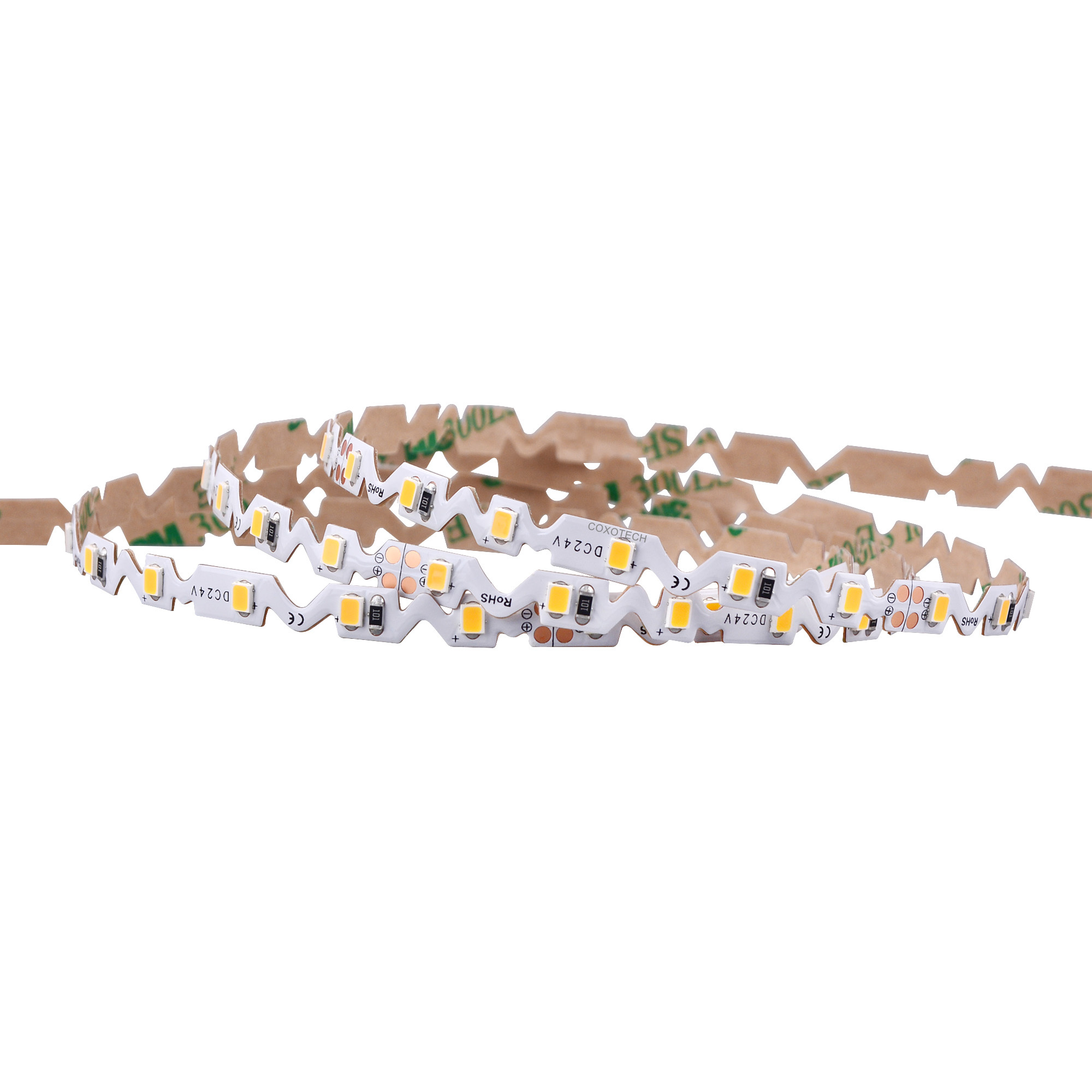

6mm 12V 72leds/m 2835 Zigzag LED strip

  • 6mm 12V 72leds/m Zigzag 2835 LED strip
  • 6mm 12V 72leds/m Zigzag 2835 LED strip
  • 6mm 12V 72leds/m Zigzag 2835 LED strip
SPECIFICATION
  • Typical Specification
LED Type 2835 SMD
LED Quantity (leds/m) 72 leds/m
Typical Color Temperature 3000K/4000K/6000K/9000k/Red/Green/Blue/Yellow
Work Voltage 12V
Power 7.2 w/m
Ra 92+
Cutting  Unit 3 LEDs 41.67mm
PCB Width 6mm
IP Rating Opthional IP20/IP65/IP67/IP68
Adhesive Tape 3M 9495LE 300MP


  • Product List
    Model No. Specification
    LED Type LED Qty (pcs/m) Color Color Temperature Work Voltage Power Brightness Ra Cutting Unit PCB Size
    F2835-72-90K-V12-NWP SMD
    2835


    60


    Cool White 9000K 12V DC

    7.2W/M


    660Lm/m


    92+ 3 LEDs 41.67mm 5000*6mm
    2 OZ
    F2835-72-60K-V12-NWP White 6000K
    F2835-72-40K-V12-NWP Natural White 4000K
    F2835-72-30K-V12-NWP Warm White 3000K
    F2835-72-R-V12-NWP Red 620-625nm / /
    F2835-72-G-V12-NWP Green 520-525nm / /
    F2835-72-B-V12-NWP Blue 460-465nm / /
    F2835-72-19K-V12-NWP Yellow 1900K / /

  • Packing Informaiton
Package 1: 500m per carton
Inner box:  25rolls 125m
34x20x22 cm / 2.4kg
Outer Box  :4 inner boxes 500m
42x35x46cm / 10.2kg
