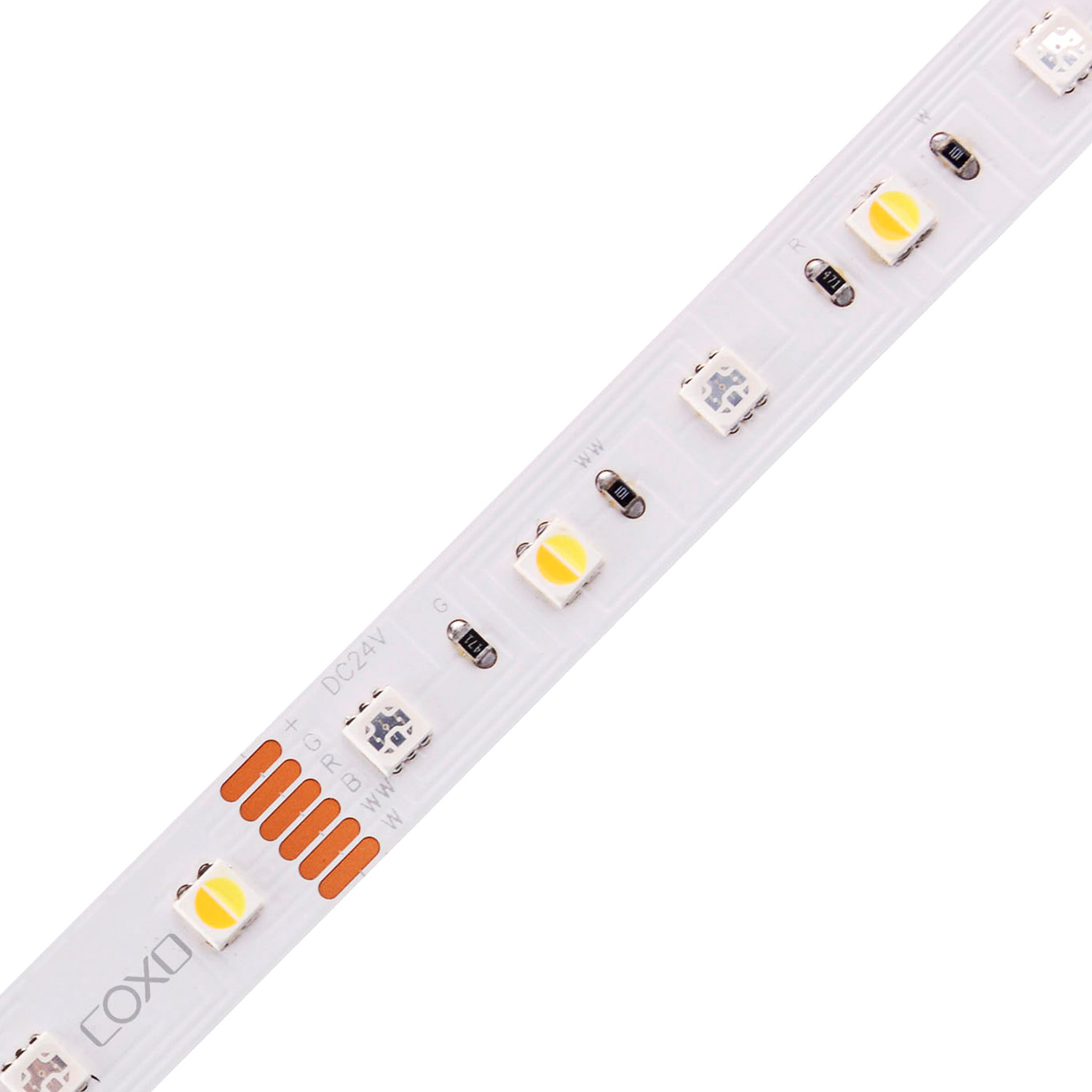

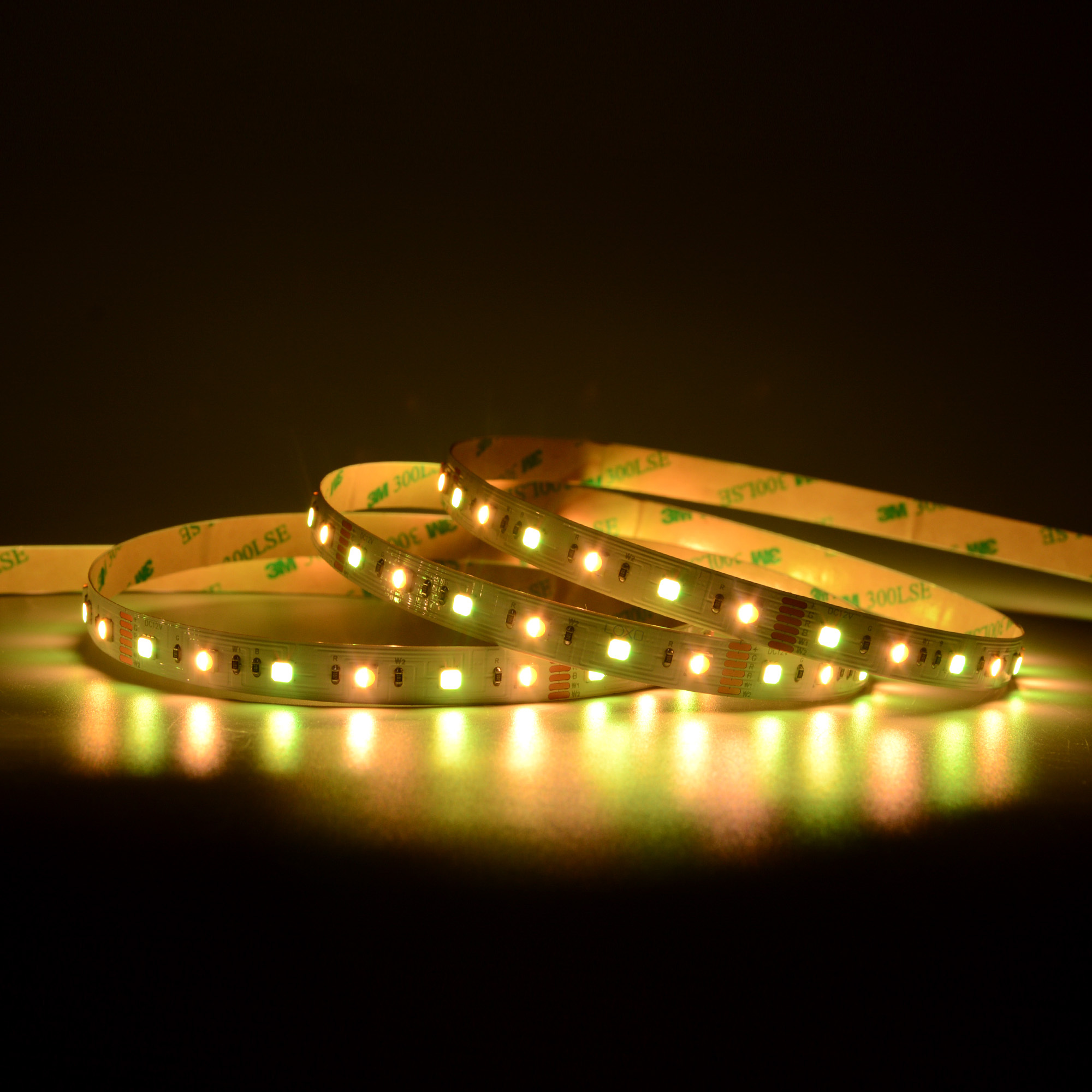

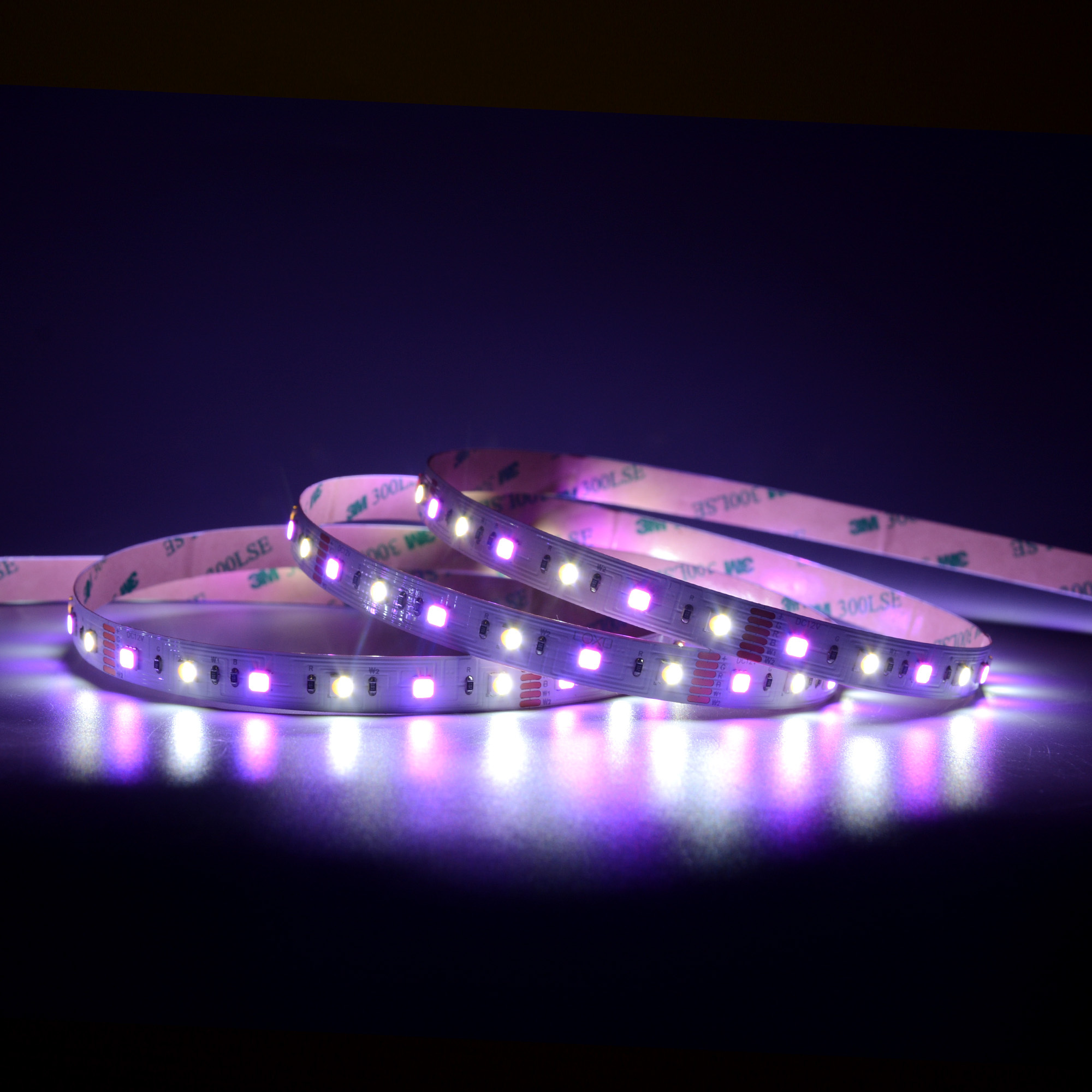

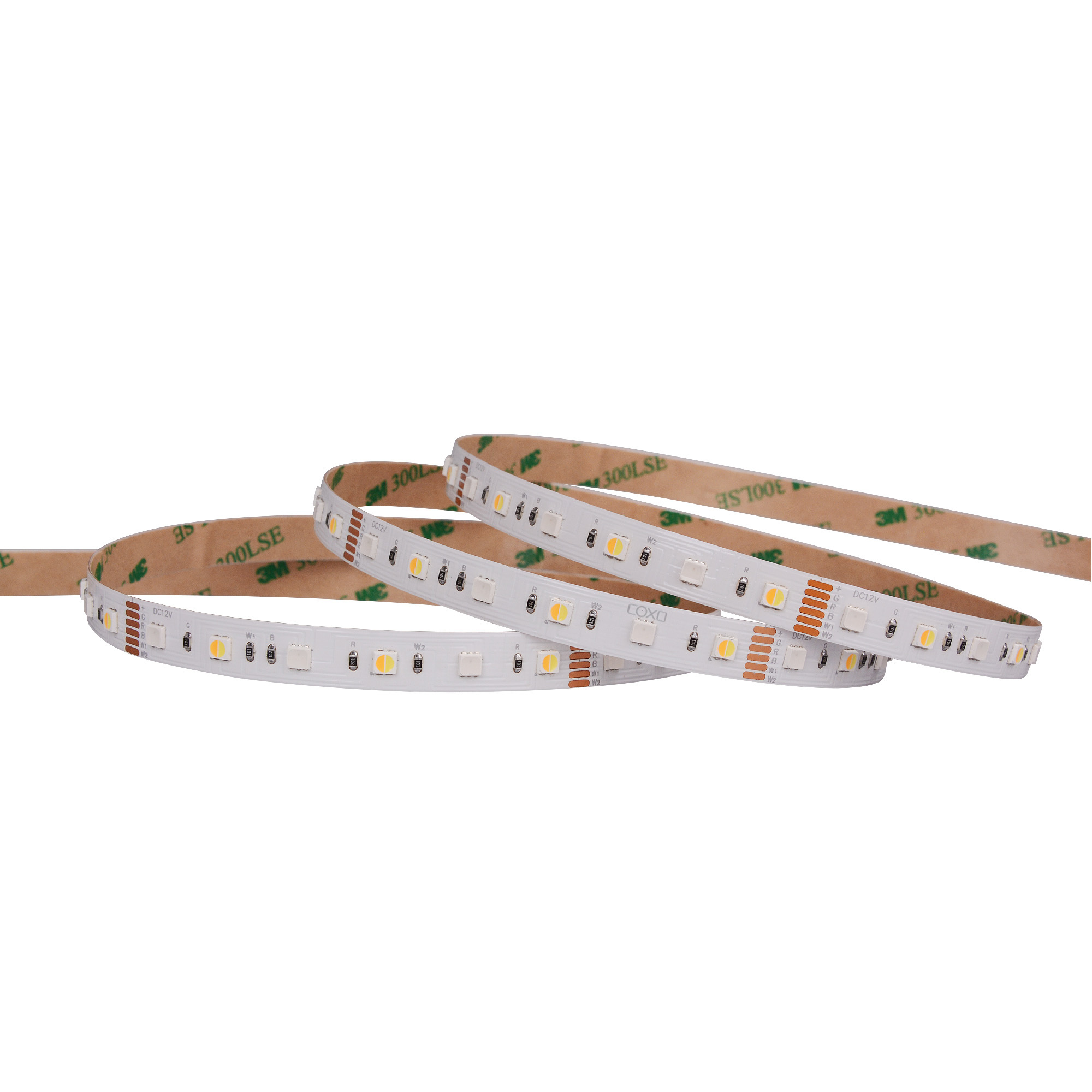

10mm 24V 72leds/m 4040 & 3838 RGBCCT LED strip

  • 10mm 24V 72leds/m 4040 & 3838 RGBCCT LED strip
  • 10mm 24V 72leds/m 4040 & 3838 RGBCCT LED strip
  • 10mm 24V 72leds/m 4040 & 3838 RGBCCT LED strip
  • 10mm 24V 72leds/m 4040 & 3838 RGBCCT LED strip
SPECIFICATION
  • Typical Specification
LED Type SMD 4040 & 3838
LED Quantity (leds/m) 72 leds/m
Typical Color Temperature RGB 2700-6500K
Work Voltage 24V DC
Power 15 w/m
Ra 80+
Cutting  Unit 12 LEDs 166.7mm
PCB Width 10mm
IP Rating Opthional IP20/IP65/IP67/IP68
Adhesive Tape 3M 9495LE 300MP


  • Product List
    Model No. Specification
    LED Type LED Qty (pcs/m) Color Color Temperature Work Voltage Power Brightness Ra Cutting Unit PCB Size
    A4038-72-RGB+CCT-V24-NWP SMD
    4040 & 3838
    72
    RGB
    2700-6500K
    RGB
    2700-6500K
    24V DC
    15W/M
    855Lm
    (6000K)
    80+ 12 LEDs 166.7mm 5000*10mm
    3 OZ

  • Packing Informaiton
Package 1: 500m per carton
Inner box:  25rolls 125m
34x20x22 cm / 2.3kg
Outer Box : 4 inner boxes 500m
42x35x46cm / 10.2kg
